CF Standard Series

Disc Finishing Machines

DISC FINISHING UNITS - CF STANDARD SERIES

The CF series of disc finishing machines can be used for any application that requires a perfect surface finish to be achieved in a very short time for a variety of work pieces such as cutting, turning, milling and stamping tools, jewelry, etc. Disc finishing machines are modular in design and available as standard with 1 – 6 process drums. All controls are accessible from the front and clearly laid out. Many years of experience have gone into the development of these machines, which is why they are so popular with our customers.

Very easy to operate
  • Speed, processing time, water/compound concentration, rinse cycles and all other main processes parameters can easily be set by means of the user-friendly Siemens touch screen control panel and up 75 different processing programs can be stored.
Absolutely reliable
  • The use of only top-quality materials and components throughout ensures trouble-free operation and a long service life.
Extremely cost-effective
  • Comparatively low capital investment and a high potential for cost savings make the CF series excellent value for money.
Perfect results
  • Deburring, smoothing, grinding and polishing – the entire range of applications with just one machine.
Disc Finishing Units
CF STANDARD SERIES

Disc finishing machines are modular in design and are available as standard with 1-6 process drums. The unique, patented gap system of the CF machines enables the gap to be set with an accuracy of 0.05 mm for dry finishing. The chassis is made of anodized aluminum profile and is therefore especially resistant to corrosion and can easily be adapted to accept add-on equipment. All controls are accessible from the front and clearly laid out. Many years of experience has been channeled into these machines, making them very popular with customers.



STANDARD EQUIPMENT
  • Process drums with hot molded PU lining
  • Aluminum profile chassis – easy to add on optional equipment
  • Speed control via frequency inverter
  • PLC touch screen control unit / 2D control unit (for the jewelry industry) with digital display of processing time, speed, rinse cycle, dosing and other key process parameters and storage for up to 75 different finishing programs.

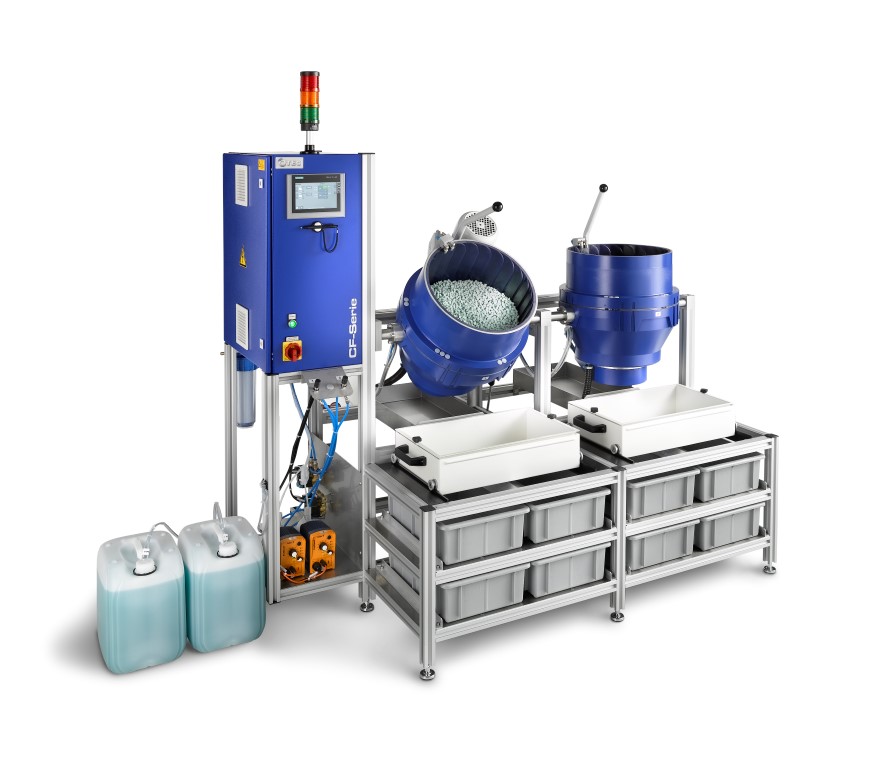

CF 2x32
CF OIL SERIES

This series has been specifically designed for use with special grinding and polishing abrasives in combination with oil instead of a water/compound mixture. They are especially suitable for work pieces that have only a very slight degree of burring (e.g. secondary burs after grinding processes). This means there is no need for cleaning or anti-corrosion surface treatment, etc.



STANDARD EQUIPMENT
  • Process drum with hot molded PU lining
  • Aluminum profile chassis – easy to add on optional equipment
  • Speed control via frequency inverter
  • PLC touch screen control unit / 2D control unit (for jewelry applications) with digital display of processing time, speed, rinse cycle, dosing and other key process parameters and storage of up to 75 different finishing programs.
CF Oil
CF MR SERIES

Flange-mounted separator unit with vibration motors and automatic process medium return. When the process drum is emptied, the work pieces are automatically separated from the medium. The abrasive medium is automatically returned when the drum swings back. The medium can easily be changed by using an interchangeable reservoir. An ingenious mechanical system provides quick and tool-free screen change.



STANDARD EQUIPMENT
  • Separation by means of vibration motor
  • Quick screen change
  • Siemens S7/200 control unit
CF MR

Disc finishing machines in the CF Standard series are suitable for all applications that call for a cost-effective and perfect surface finish on work pieces that vary in shape and size. The difference between the centrifugal forces acting on the work pieces and the process medium creates a very powerful finishing effect. This can be up to 20 times more efficient than, for example, conventional vibrators.

CERAMIC GAP SYSTEM

With this system, the gap can be set to an accuracy of 0.05 mm since it is formed by using two ceramic rings made of SIC. This technology is best suited to dry finishing since it enables best results to be obtained by using very fine polishing granulates.

PATENTED ZERO GAP SYSTEM

For the wet finishing of very fine work pieces. The gap between the rotating disc and the stationary drum can be reduced to zero. This enables very fine grain abrasive media such as quartz to be used and prevents any work pieces from becoming lodged in the gap.

CERAMIC/POLYURETHANE GAP SYSTEM

This standard system from OTEC is suitable for the most common applications in wet finishing. The ceramic/polyurethane combination prevents any work pieces from becoming lodged in the gap area, making the process very reliable and reducing maintenance requirements.

CF Standard Sizes and Specifications
Container

capacity

[l]

Inside diameter

of container

[mm]

Length x Depth x Height

[mm]

Weight

[kg]

Power

input

[kVA/V]

CF 1 x 9 9 257 810 x 1000 x 1620 118 1.2/230
CF 2 x 9 2 x 9 257 1240 x 1000 x 1620 182 1.8/230
CF 3 x 9 3 x 9 257 1670 x 1000 x 1620 220 3.0/230
CF 4 x 9 4 x 9 257 2200 x 1000 x 1620 254 3.6/230
CF 1 x 18 18 333 880 x 1000 x 1620 127 0.9/230
CF 2 x 18 2 x 18 333 1380 x 1000 x 1620 200 2.0/230
CF 3 x 18 3 x 18 333 1880 x 1000 x 1620 234 3.0/230
CF 4 x 18 4 x 18 333 2405 x 1110 x 1760 350 4.5/230
CF 1 x 32 32 410 1130 x 1120 x 1630 285 2.0/230
CF 2 x 32 2 x 32 410 1960 x 1120 x 1630 520 4.5/400
CF 3 x 32 3 x 32 410 2780 x 1120 x 1630 750 7.0/400
CF 4 x 32 4 x 32 410 3610 x 1120 x 1630 900 9.0/400
CF 1 x 50 50 485 1200 x 1535 x 1680 265 2.5/230
CF 2 x 50 2 x 50 485 2120 x 1535 x 1680 450 5.0/400
CF 3 x 50 3 x 50 485 3040 x 1535 x 1950 635 7.5/400
CF 4 x 50 3 x 50 485 3940 x 1535 x 1950 1050 10.0/400



CF-T Sizes and Specifications
Container

capacity

[l]

Inside diameter

of container

[mm]

Length x Depth x Height

[mm]

Weight

[kg]

Power

input

[kVA/V]

CF 1 x 5 T 5 190 525 x 475 x 630 30 0.4/230
CF 2 x 5 T 2 x 5 190 780 x 475 x 630 63 0.8/230
CF 1 x 9 T 9 257 700 x 560 x 750 65 0.9/230
CF 2 x 9 T 2 x 9 257 1150 x 560 x 750 116 1.8/230
CF 1 x 18 T 18 333 780 x 580 x 750 80 0.9/230
CF 2 x 18 T 2 x 18 333 1280 x 580 x 750 140 1.8/230
